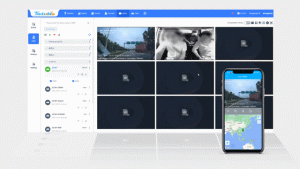

Dash Cam – JC181 Video Surveillance:
Powerful LTE connectivity enables the live monitoring of the vehicle’s interior and exterior via an online platform; while the critical video clips in the device allows for on-demand playback after the fact from anywhere, at any time.
Dash Cam – JC181 Video Surveillance
Dual-Channel Recording:
Simultaneously monitor the road ahead and what happens in the cab in real-time through the two on-device lenses, with no peripheral camera needed.
Built-in GPS Logger:
The video recorder can be used as a tracker to locate the vehicle and stamp data such as vehicle speed, coordinates, time, and more on the images or video clips.

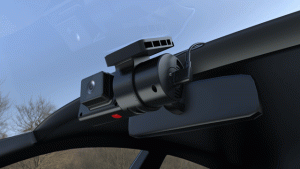

Compact Size:
The small form factor allows discreet installation behind the rear view mirror without blocking the driver’s view.

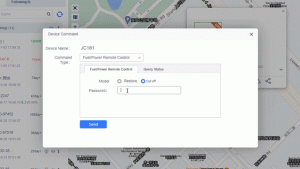

Remote Vehicle Immobilization:
Dash Cam – JC181 enable you to cut off the fuel/power to the vehicle moving under 20km/h using Tracksolid Pro, which is useful if your fleet vehicle has been stolen.
| Specification | |
| Network | |
| Standard | 4G LTE Cat.1 |
| WiFi | 2.4GHz, Support WiFi Direct |
| Band | Latin American Version LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 GSM: B2/B3/B5/B8 |
| Eurasian Version LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
|
| Camera | |
| Front Camera (Main) | 1920×1080/30FPS/F2.2/Full color/110° (HFoV) |
| Sub Camera | 640×360/10FPS/F2.8/Full color in daytime & monochrome in dim light/100° (HFoV) |
| Video Format | .mp4 |
| Configuration | |
| GNSS | GPS/BDS/AGPS |
| Sensor | 3-axis |
| Microphone | Support |
| Speaker | Support |
| Interface | Type-C USB*1, Relay*1 |
| Memory Support | TF Card (Up to 128GB) |
| SIM Card Type | Nano |
| LED Indication | Red (Power), Green (GNSS), Blue (Cellular) |
| Others | |
| Power Supply | Power cable: B+/ACC/GND |
| Operating Voltage | DC 9–30V |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –30°C to +85°C |
| Device Weight | 143g |
| Device Dimension | 118*46.5*43.5mm |
* We reserve the right to the final interpretation for this product. All information is for reference only and is subject to change without further notice.
